References

Command Line Reference

492 views 1 May 31, 2021 Updated on February 28, 2024 ahmed

All VIOSO programs can be launched from the Windows command line with various parameters that allow you to automate and control the behavior of the software. Download the command line reference here: VIOSO Calibrator & Player CmdLn Params

Software Executable Path:

To launch VIOSO from the command line, you must first locate its executable file (.exe). This will depend on the version and path you chose during installation:

  • VIOSO Player:
    32-bit: C:\[Path of installation]\VIOSO Player\VIOSOPlayer.exe
    64-bit: C:\[Path of installation]\VIOSO Player\VIOSOPlayer64.exe
  • VIOSO Integrate:
    32-bit: C:\Program Files\VIOSO Integrate\SPIntegrate.exe
    64-bit: C:\Program Files\VIOSO Integrate\SPIntegrate64.exe
  • VIOSO Anyblend / Anyblend VR&SIM:
    32-bit: C:\[Path of installation]\SPCalibrator\SPCalibrator.exe
    64-bit: C:\[Path of installation]\SPCalibrator\SPCalibrator64.exe
  • VIOSO 6:
    64-bit: C:\Program Files\VIOSO6\SPCalibrator64.exe

*You can also start the application from the Windows Start Menu: All Programs / VIOSO[Player/Anyblend/Integrate]

Command Line Parameters:

Parameter Description Note
/a starts a recalibration behaviour on application startup
/A starts a recalibration behaviour on application startup and closes when the calibration is done
/C:"path" path of the (.ini) file directory to use removed in VIOSO 6
/E exports using using automation script after load and recalibration, if specified
/F:"profile" prefered GUI Profile (if available) accepted profiles: ”file player”, ”Standard”, “first init”
/I:"ip" initializes a network adapter (IP address) to use
/H starts the application in scripting host mode, able to perform complex automatic behaviour, defined via script files
/H:"file" starts the application in scripting host mode and loads a scripting file (.ini) on startup, requires full path
/L:"file" loads a calibration file on startup, requires full path. e.g.: /L:”D:\Calibration\calib_Final.sps”
/Lang:n defines the default language of the application (n: Language code, ex: 1033: English US; 1031 German Germany)
/M starts application GUI minimized
/O:"path" path => name of the project path to use at startup new in VIOSO 6
/R starts playout automatically on application startup
/S:"path" path of the data exchange directory to use
/V Verbose mode (gives detailed information on errors)
/X:"name" Name of the memory file in case of IPC using

Examples

Running a script (e.g. 1-click recalibration ):

start "" /D "C:\Program Files\VIOSO6" "C:\Program Files\VIOSO6\SPCalibrator64.exe" /H:"D:\Calibration\Scripts\MyRecal.ini"

This command starts VIOSO 6 and runs a script:

  • starts VIOSO 6 from its standard installation path C:\Program Files\VIOSO6"
  • loads the script “MyRecal.ini” from D:\Calibration\Scripts\
  • performs all steps of the script “MyRecal.ini” which could e.g. perform a recalibration

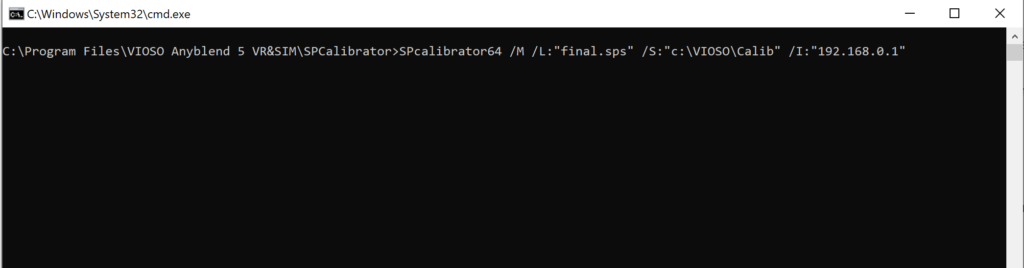

Starting a calibration (Anyblend 5):

C:\Program Files\VIOSO Anyblend 5 VR&SIM\SPCalibrator\SPCalibrator64 /L:"final.sps" /S:"c:\VIOSO\Calib" /I:"192.168.0.1" /M

This command starts VR&SIM with the following operations:

  • loads “final.sps” from the standard data path
  • uses C:\VIOSO\Calib as standard data path
  • initializes network interfaces of application on the adapter 192.168.0.1
  • starts the application minimized



Software Installer Parameters

Our VIOSO installer uses Inno Setup, you can use command line parameters to customize and automate it.
