Remote Control Reference

1506 views 3 April 17, 2020 Updated on May 15, 2023 emanuel

VIOSO Player, VIOSO Anyblend, and VIOSO Anyblend VR&SIM utilize the same remote control interface. Using this, a lot of application features can be controlled via TCP/IP. To learn more about the configuration, please have a look at the section of the VIOSO Player Manual or VIOSO Anyblend Manual.

We provide some testing tools, that help to integrate with third party media control systems. Learn more here: Remote Control Test Tools

This reference is also available for download as PDF: VIOSO Remote Control Reference 3.0

1. Preparation

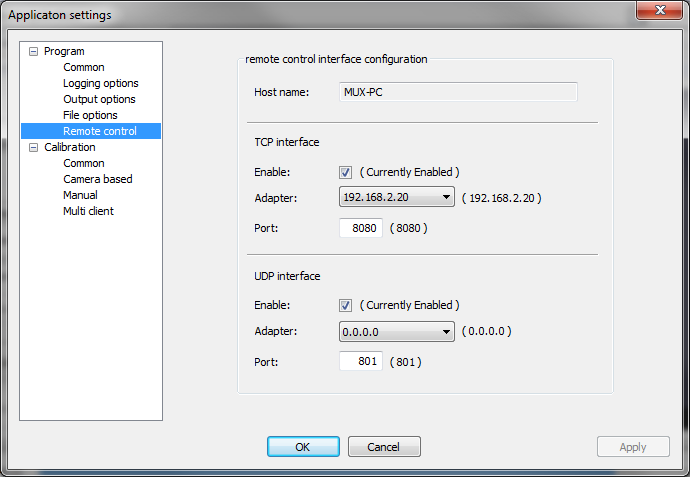

The network control interface must be enabled. You can find the network related options in the application menu: “Options → Settings → Remote Control”.

You must enable the desired interface type first. Then you should configure the network adapter and port to use. The special adapter ip 0.0.0.0 represents all available network adapter of used pc. After an restart of the application, the configured interface is available.

2. Usage

There are two ways to send commands.

  1. You can use each browser application to send a command request. Please type the command string with leading ip and port address in the address bar and press the enter button. e.g. “http://192.168.2.20:8080/player.htm?state=play“.
    The server will answer with a HTTP response header and attached HTTP side or attached response string.
  2. You can use your own network tool, media control solution or with the installation distributed test tools, to send command to the server. There a two ways to send the command string:
    1. You can send a simple command string, terminated with “\r\n” or “\n” character(s) ( 0xD 0xA hexadecimal, <CR><LF> or 0xA hexadecimal, <LF>).
      E.g. “player.htm?state=play\r\n“
      If you use the TCP interface, the server will answer with a simple response string. If you use the UDP interface, the server will send no answer (fire and forget).
    2. If you use the TCP interface, you can send a command request encapsulated in a minimum HTTP header, using the GET method.
      E.g. “GET /player.htm?state=play HTTP/1.1\r\n\r\n“
      The server will answer with a HTTP response header and attached HTTP side or attached response string.

3. Test Tools

If you have chosen install „Shared Components“ during Installation, there are several tools to equip you to test:

  • TCP-/ UDP-interface
  • command behavior
  • spy/ record network communication with third party software

You can execute/ find the test tools over the application startmenu entry; sub-entry “Tools”.
Except TCP Test Tool 2, each of the described test tools below, have a command line interface. With the command line interface you are able to use the test tools in scripts, links and so on. You can find a documentation of available command line options inside sub-entry “Manuals”.

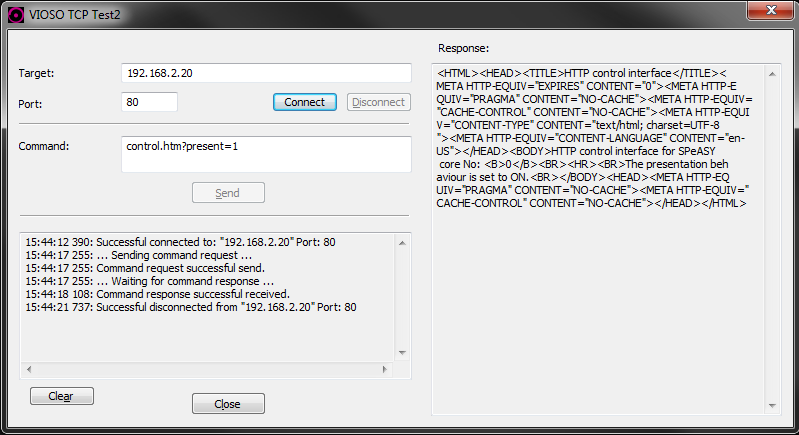

3.1. TCP Test Tool 2

With the TCP Test Tool 2 you can test the TCP interface using a permanent (long live) connection to one target. This tool also display a log of all network operations.

You can specify one target by adding the IP of the remote pc to the target list. By pressing the “Send” button, the tool:

  • creates a connection to the current treated target
  • sends the command string as simple string (see above)
  • waits for response
  • depicts the response string inside the response area on right side of the application
  • and closes the connection to the current treated target.

3.1.1. Where to find it

Software location after installation of VIOSO Anyblend, Anyblend VR&SIM or VIOSO Player:

  • Via Windows Start Menu: All Programs / VIOSO [Program Name] / Tools / TCP Test Tool
  • Exe file location: C:\[Path of installation]\Shared Tools\ VIOSO_TCP_Test.exe

3.1.2. Command line usage

Available parameters:

/D:"ip" ip of the destination
if /D is not specified, the app will be configured for broadcasting
/P:# # => port number
/C:"..." “...” => command string to send (plain)
/A if set, the application tries to send the command and closes app automatically

Example:

VIOSO_TCP_Test2.exe/D:"192.168.2.2" /P:801 /C:"control.htm?present=1" /A

Sends the command “control.htm?present=1” to 192.168.2.2, using port 801 automatically.

Exit code:

VIOSO_TCP_Test2.exe returns an exit code on exit:

  • 0 : successful
  • 1 : an error occurred (Command could not be sent to all destinations.)

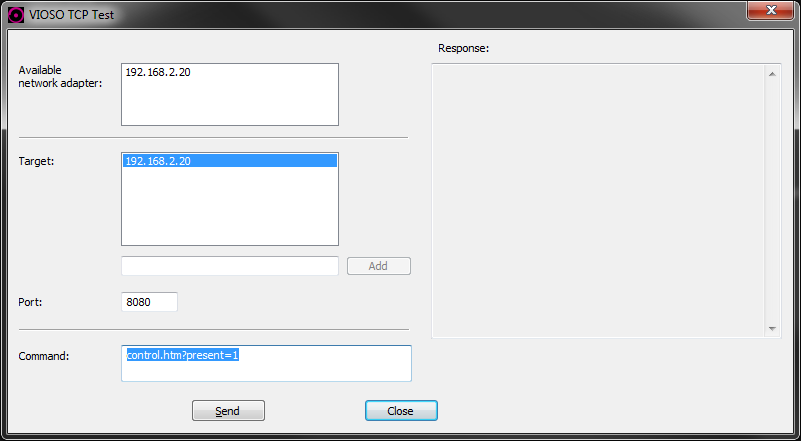

3.2. TCP Test Tool

The TCP Test Tool is the predecessor to TCP Test Tool 2.

This tool does the same actions as it successor TCP Test Tool 2, but does not use a permanent connection and does not monitor all network traffic. It just outputs the response of the target.

We recommend to use TCP Test Tool 2 whenever possible.

3.2.1. Where to find it

Software location after installation of VIOSO Anyblend, Anyblend VR&SIM or VIOSO Player:

  •  Via Windows Start Menu: All Programs / VIOSO [Program Name] / Tools / TCP Test Tool 2
  • Exe file location: C:\[Path of installation]\Shared Tools\ VIOSO_TCP_Test2.exe

See previous chapter for command line parameters.

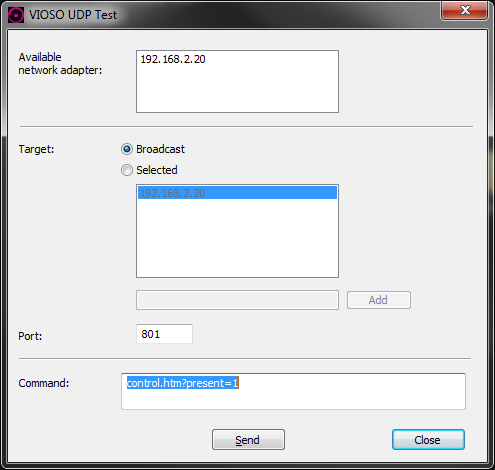

3.3. UDP Test Tool

With the UDP Test Tool you are able to test the UDP interface.

You can specify one ore more targets by adding the IP of a desired PC to the target list. Beside this option, the tool is able to send the command string as broadcast to all computers in network.

By pressing the “Send” button, the tool sends a datagram, containing the command string, to all selected targets successively. If you use the broadcast option, the tool sends a broadcast datagram.

3.3.1. Where to find it

  • Via Windows Start Menu: All Programs / VIOSO [Program Name] / Tools / UDP Test Tool
  • Exe file location: C:\[Path of installation]\Shared Tools\ VIOSO_UDP_Test.exe

3.3.2. Command line usage

Available parameters:

/D:"ip" ip of the destination
if /D is not specified, the app will be configured for broadcasting
/P:# # => port number
/C:"..." “...” => command string to send (plain)
/A if set, the application tries to send the command and closes app automatically

Example:

VIOSO_UDP_Test.exe /D:"192.168.2.2" /P:801 /C:"control.htm?present=1" /A

Sends the command “control.htm?present=1” to 192.168.2.2, using port 801 automatically.

Exit code:

VIOSO_TCP_Test2.exe returns an exit code on exit:

  • 0 : successful
  • 1 : an error occurred (Command could not be sent to all destinations.)

4. Command Reference

4.1. Media Playback related commands

Provides Player related actions. Use playcontrol.htm to get human readable response.

TCP/IP and UDP description from
player.htm?state=play Sets the playback state, which starts the playback at the currently selected playlist item. 1.0
player.htm?state=pause Pauses the current playback. 1.0
player.htm?state=stop Stops the current playback, the seeker is set to the beginning of the currently selected playlist item. 1.0
player.htm?select=next Selects the next item of the playlist. If playback state is set, the playback of the selected item starts. 1.0
player.htm?select=prev Selects the previous item of the playlist. If playback state is set, the playback of the selected item starts. 1.0
player.htm?select=1 Selects the first item of the playlist. If playback state is set, the playback of the selected item starts. 1.0
player.htm?select=99999 Selects the last item of the playlist. If playback state is set, the playback of the selected item starts. 1.0
player.htm?mute=1 Mutes the player audio output temporary. 1.2
player.htm?mute=0 Re-Enables the player’s audio output. 1.2
player.htm?audio=0..100 Sets the global audio level to [0..100]%. 1.2
player.htm?autoplay=1 Sets the autoplay state active. 1.2
player.htm?autoplay=0 Sets the autoplay state inactive. 1.2
player.htm?load=[fullpath] Loads a playlist XML file from disk, specified by [fullpath].
E.g.: player.htm?load=D:\My_Playlists\list1.xml.Note: use alphanumeric characters only (avoid characters like #, &) in filenames.		 1.2
player.htm?save=[fullpath] Saves the current playlist to a file specified by [fullpath].
E.g.: player.htm?save=D:\My_Playlists\list1_backup.xmlNote: use alphanumeric characters only (avoid characters like #, &) in filenames.		 1.2
player.htm?add=[fullpath, pause, stop, jump]&pos=[p] Adds a file or playlist item.
If the additional parameter pos=[p] is used, the new item will be inserted at list position [p].
E.g.: player.htm?add=D:\My_Content\Image.jpg adds Image.jpg to the playlist. The file must located inside the default content directory.
player.htm?add=pause adds a pause control item to the playlist.
player.htm?add=stop adds a stop control item to the playlist.
player.htm?add=jump adds a jump to first item control item to the playlist.Note: use alphanumeric characters only (avoid characters like #, &) in filenames.		 1.2
player.htm?move=[up, down, top, end, [t]]&select=[p] Moves the playlist entry [p] to the specified position. [t] can be used to define a desired absolute position.
E.g.: player.htm?move=up&select=5 moves playlist item no. 5 one position up.
E.g.: player.htm?move=2&select=7 moves playlist item no 7 to the position 2.		 1.2
player.htm?activate=[p] Activates the playlist item [p] 1.2
player.htm?deactivate=[p] Deactivates the playlist item [p] 1.2
player.htm?loop=[p] Activates the loop behaviour of item [p], if available 1.7
player.htm?noloop=[p] Dectivates the loop behaviour of item [p], if available 1.7
player.htm?delete=[[p], all] Deletes entry [p] from the playlist, [all] to clear the whole playlist. 1.2
player.htm?refresh=[[p], all] Refreshes the meta-data (size, date, etc.) of the item [p] in the playlist.
E.g.: player.htm?refresh=2 refreshes the meta data of item 2 in the playlist.		 1.2
player.htm?tmPerImg=[s]&select=[p] In case of an image sequence item this command changes the display time of each image;
[s] seconds as float value, [p] position of the item to change;
e.g. player.htm?tmPerImg=4.5&select=3 sets the time per image for this sequence at position 3 to 4.5 seconds		 1.2
player.htm?status Retrieves a comma separated list with status information
  • current index of selected/ played item in playlist
    • -1 => empty playlist
    • n => 1 based index of the current selected/ played item
  • number of items in playlist
  • state of selected/played item
    • -1 => undefined state
    • 0 => item is in stop state
    • 1 => item is in pause state
    • 2 => item is in play state
 1.7
player.htm?status=index Retrieves the index of currently selected/ played item in playlist
  • -1 => empty playlist
  • n => 1-based index of the current selected/ played item
 1.7
player.htm?status=count Retrieves the number of items in the playlist 1.7
player.htm?status=state Retrieves the state of the current selected/played item
  • -1 => undefined state
  • 0 => item is in stop state
  • 1 => item is in pausestate
  • 2 => item is in play state
 1.7
player.htm?list=state Retrieves an overview of useful information as comma separated list. Format: a,b,c,d,e,f,g
  • a => showmode
    • [1]: on
    • [2]: off
  • b => selected playlist item position
  • c => player state
    • -2: unkmown
    • -1: off
    • 0: stopped
    • 1: paused
    • 2: playing
  • d => stream position in percent, integer [0 .. 100]
  • e => audio balance in percent, integer [-100 .. 100]
  • f => audio volume in percent, integer [0 .. 100]
  • g => duration in milliseconds [0 .. n]
 1.7
player.htm?list=volume Retrieves the current audio volume setting.
  • -2 => unknown
  • -1 =>  offline
  • 0 .. 100 => volume in percent (integer)
 1.7
player.htm?list=balance Retrieves the current audio balance setting.
  • -2 => unknown
  • -1 =>  offline
  • 0 .. 100 => volume in percent (integer)
 1.7
player.htm?list=playing Retrieves informations about the play state of the playlist.
  • -2 => unknown
  • -1 =>  offline
  • 0 =>  is stopped
  • 1 =>  is paused
  • 2 =>  is playing
 1.7
player.htm?list=showmode Retrieves the current showmode state
  • 0 => off
  • 1 =>  an
 1.7
player.htm?list=playItem Retrieves the current selected playlist item position 1.7
player.htm?list=position Retrieves the current stream position in percent
  • -2 => unknown
  • -1 =>  offline
  • 0 .. 100 => stream position in percent (integer)
 1.7
player.htm?list=seeker Retrieves the current stream position in more detailed mode. Format: a,b
a => seeker position
  • -2: unknown
  • -1: offline
  • 0.0 .. 1.0: relative position inside the stream as double value

b => duration of the stream in milliseconds

  • 0 .. n: duration in milliseconds, 0 for infinite items, images and so on
 1.7
player.htm?list Retrieves a list of all items in playlist. One item per line.
Per line contained information: a,b,c,d,e,f
  • a => item position in playlist
  • b => type of the item
    • ctrl: control item
    • unknown: unknown item
    • file: media file
    • seq: image sequence
    • error: error 🙂
  • c => subtype of the item
    • image: image file
    • video: video file
    • unknown: unknown
    • goto: jump to control item
    • pause: pause control item
    • stop: stop control item
  • d => description
    • file name in case of media file or unknown
    • empty for pause, stop control item
    • jump to item position for jump control item
    • path and search mask for image sequence or unknown
  • e => duration
    • duration of item in milliseconds
    • infinite or empty otherwise
  • f => additional description flag, one or more of follow bit flags
    • 0x1: current selected item
    • 0x2: item is disabled
    • 0x4: infinite duration
    • 0x8: loop ability is set
 1.7
player.htm?item=mediainfo&select=[p]
player.htm?item=mediainfo 		Retrieves media informations about the current selecteded playlist item if no select parameter is specified, or about playlist item [p].
The media information comes as comma-separated list: a,b,c,d,e,f,g,h,i,j
  • a => item type
    • ctrl: control item
    • file: media file
    • seq: image sequence
    • mrd: model rendering definition
    • -: not specified
  • b => subtype of the item
    • image: image file
    • video:video file
    • goto: jump to control item
    • pause: pause control item
    • stop: stopcontrol item
    • -: not specified
  • c => file name or - if not specified
  • d => file size or - if not specified
  • e => duration in milliseconds or - if not specified
  • f => image size [width x height] or - if not specified
  • g => bit rate or - if not specified
  • h => video format list or - if not specified
  • i => audio format list or - if not specified
  • j =>image format list or - if not specified
 1.8
player.htm?seekerto=[f] Sets the stream position of an active playing stream based playlist item to a specific position. The presenter pipeline must be in showmode on state and the current played playlist item must be in play or pause state.
[f] can be an integer [0 .. 100] defining the relative stream position in percent, or a double [0.0 .. 1.0] defining the relative stream position more precisely.		 1.7
player.htm?seekerby=[f] Used to change the stream position of an active playing stream based playlist item by a specified portion. The presenter pipeline must be in showmode on state and the current played playlist item must be in play or pause state.
[f] can be an positive or negativ integer, defining the portion in milliseconds the stream position should be changed, or a double [-1.0 ..1.0] defining the portion in relative way.
Examples:
player.htm?seekerby=-10000 => goes 10 seconds backward from current stream position
player.htm?seekerby=0.1 => goes 10% forward from current stream position		 1.7
player.htm?smoothborder=[1,0] Toggles the smooth border presenter feature 1.7
player.htm?fullscreen=[1,0] Toggles the fullscreen presenter pipeline feature. 1.7
player.htm?blank=[1,0] Toggles the blank screen(s) presenter pipeline feature. 1.8

4.2. Receiving meta information about files

Interface to receive informations about available media files

TCP/IP and UDP description from
mediafile.htm?list
mediafile.htm?list&fmt		 Retrieves a list of all available media files onto the server (comma
separated list).
fmt: The response is given as HTTP side (one file per line).		 1.7
playlistfile.htm?list
playlistfile.htm?list&fmt		 Retrieves a list of all available playlist files onto the server (comma
separated list).
fmt: The response is given as HTTP side (one file per line)		 1.8
calibfile.htm?list
calibfile.htm?list&fmt		 Retrieves a list of all available calibration files onto the server (comma
separated list).
fmt: The response is given as HTTP side (one file per line).		 1.8

4.3. Receiving previews

Interface to receive preview images of playlist items

TCP/IP and UDP description from
preview.htm?select=[p] Retrieves the preview image of playlist entry [p] .
e.g.: preview.htm?select=5 retrieves the preview image of playlist entry 5.		 1.7

4.4. Controlling render output behaviour

Get/set presenter pipeline specific parameters

TCP/IP and UDP description from
presenter.htm?get=globalcolor
presenter.htm?get=globalcolor&
fmt		 Retrieves the current global color settings (comma separated list).
fmt: The response is given as HTTP side.
Format: a,b,c,d
a => showmode state
  • 0: off
  • 1: on

b => red color channel value, 0 .. 1000, empty if showmode off
c => green color channel value, 0 .. 1000, empty if showmode off
d => blue color channel value, 0 .. 1000, empty if showmode off

 1.7
presenter.htm?get=fullscreen
presenter.htm?get=fullscreen&fmt		 Retrieves the current fullscreen presenter feature setting state.
fmt: The response is given as HTTP side.
  • 0: not set currently
  • 1: current set
  • -1: current not available
 1.7
presenter.htm?get=smoothborder
presenter.htm?get=smoothborder&fmt		 Retrieves the current smooth border presenter feature setting state.
fmt: The response is given as HTTP side.
  • 0: not set currently
  • 1: current set
  • -1: current not available
 1.7
presenter.htm?get=blank
presenter.htm?get=blank&fmt		 Retrieves the current blank screen(s) presenter feature setting state.
fmt: The response is given as HTTP side.
  • 0: not set currently
  • 1: current set
  • -1: current not available
 1.8
presenter.htm?globalcolor=[r,g,b]
presenter.htm?globalcolor=[r,g,b]&fmt		 Sets new global color values. The presenter pipeline has to be in
showmode on state.
fmt: The response is given as HTTP side.
r,g,b in the range of 0 .. 1000, empty color place for unchanged		 1.7
presenter.htm?smoothborder=[1,0]
presenter.htm?smoothborder=[1,0]&fmt		 Enables, disables the smooth border presenter pipeline feature.
fmt: The response is given as HTTP side.		 1.7
presenter.htm?fullscreen=[1,0]
presenter.htm?fullscreen=[1,0]&fmt		 Enables, disables the fullscreen presenter pipeline feature.
fmt: The response is given as HTTP side.		 1.7
presenter.htm?blank=[1,0]
presenter.htm?blank=[1,0]&fmt		 Enables, disables the blank screen(s) presenter pipeline feature.
fmt: The response is given as HTTP side.		 1.8

4.5. General program control

TCP/IP and UDP description from
control.htm?present=1 Enables show mode while Output is displayed. 1.0
control.htm?present=0 Disable show mode while Output is displayed. 1.0
control.htm?shutdown=1 Shuts down the operating system. 1.0
control.htm?shutdown=2 Shuts down the operating system and reboots. 1.0
control.htm?exit Close the currently addressed running instance of the application. 1.0
control.htm?calibrate=M0 Starts a camera-based recalibration on a single client system without any user interaction (1-click recalibration). 1.0
control.htm?calibrate=MC Stops a running calibration without changing the currently used calibration ona  single client systen 1.0
control.htm?calibrate=N0 Starts a camera based multiclient recalibration without any user interaction (1-click recalibration) 1.0
control.htm?calibrate=NC Stops a running multiclient calibration without changing the currently used calibration. 1.0
control.htm?calibrate=status Returns 1, in case a calibration is running, 0 otherwise 1.8
control.htm?execute=[filename][Param]
control.htm?execute=”filename”]Param] 		Executes the specified file. The executable has to be located inside the subdirectory \Execute inside the data exchange directory of the server.
Param: optional command line parameter
Note: use alphanumeric characters only (avoid characters like #, &) in filenames.		 1.0
control.htm?preset=[x] Loads the calibration file “Preset[x].sps” that must located inside the default calibration folder. [x] defines an integer.
example: control.htm?preset=12 loads the file “Preset12.sps” 		1.0
control.htm?settings=[x] Loads the calibration file “Settings[x].sps” that must located inside the default calibration folder. [x] defines an integer. The difference towards preset (see above) is, that the calibration file will be loaded by the GUI and not intern.
example: control.htm?settings=1 loads the file “Settings1.sps” 		1.0
control.htm?clear=[xxx] Clears configurations and data. [xxx] defines which data should be cleared, each letter defines a special kind of data:
  • c => calibration data
  • r  => renderpipe configuration
  • p => custom resource parameter (e.g. custom display names )
  • l => file lists
  • s => display split informations

example: control.htm?clear=cp clears all calibration data and the custom resource parameter

 1.7
control.htm?save=[filename]
control.htm?save=[filename]&wait=[x] 		Saves the current calibration state to specified “filename”
wait: optional
  • 1: wait until core has been saved
  • 0: set request only
 2.0
control.htm?ShowOutput=0 Makes all current output windows invisible (on master) 2.3
control.htm?ShowOutput=1 Makes all current invisible output windows visible again (on master) 2.3

4.6. 3D model specific commands

3D-model depended computation control

TCP/IP and UDP description from
model3d.htm?status
model3d.htm?status&fmt		 Retrieves the current status of the 3D-model engine, as text string.fmt: The response is given as HTTP side.
Available response strings (defined in c conform string format definition):
    • "Status: \"Unitialized\"\r\n"
    • "Status: \"Waiting for base method settings.\"\r\n"
    • "Status: \"Preparing base method settings.\"\r\n"
    • "Progress: \"%1.0f %%\"\r\n" (percental progress)
    • "Status: \"Ready for static model computation.\"\r\n"
    • "Status: \"Performing static model computation.\"\r\n"
    • "Progress: \"%1.0f %%\"\r\n" (percental progress)
    • "Status: \"Undefined entity state.\"\r\n"
  • "Could not create 3D model treatment status report.\r\n"
 1.6
model3d.htm?process Starts the 3D-model computation, based on current settings.
Available response strings:
  • "Computation request was set successful."
  • "Could not send process signal."
  • "Could not configure 3D model treatment behaviour."
  • "3D model treatment behaviour is not in right state."
 1.6

4.7. Script Engine commands

Interface to control the script engine

TCP/IP and UDP description from
script.htm?status
script.htm?status&fmt		 Retrieves the current status of the script engine, as text string.
fmt: The response is given as HTTP side.
Available response strings (defined in c conform string format definition):
  • "Script Host ready for use.“
  • "Script: \"%s\"\r\n" (name of the current treated script)
    • "Result: \"loaded\" (%s)\r\n" (error string)
  • "Script: \"%s\"\r\n" (name of the current treated script)
    • "Result: \"could not load\" (%s)\r\n" (error string)
  • "Script: \"%s\"\r\n" (name of the current treated script)
    • "Step: \"%u/%u\" (%s)\r\n" (example: Step: “2/21” (in progress) )
    • "Result: \"%s\"\r\n" (error string)
    • "Desc: \"%s\"\r\n" (short summary of the current treated script line)
  • "Script: \"%s\"\r\n" (name of the current treated script)
    • "Result: \"successful processed\"\r\n"
  • "Could not create script host report.\r\n"
 1.6
script.htm?execute=filename
script.htm?execute=filename&pa
ram=[...]		 Executes the specified script file.
Available response strings (defined in c conform string format definition):
  • “Script host was initialized successful.”
  • “Could not send activation signal.”
  • “Script host executes another script currently or is in wrong entity state.”
  • “Script file not found or an unknown error occurs.”
  • “Could not convert file name.”
    • “Could not create intern synchronize interface.”

In additional to the script file name to execute, a parameter string can be defined to define variables. A variable can defined by:
name=value or name=value,format
where:

  • name => name of the variable
  • value => value of the variable
  • format => optional format specification
    • f: value is a float value
    • d: value is a double value
    • i: value is an integer value

No format specificaton implies a string value. More than one variable can defined by a semicolon separated list.
Example:

script.htm?execute=start.ini&param=val1=front;val2=2.5,f

The script start.ini should be processed and two variables should be defined: val1 as string variable with value front and val2 as float variable with value 2.5. This variables can be used by start.ini script.

 1.6
script.htm?abort Aborts the execution of a currently processed script. 1.6
info.htm?displays
info.htm?displays&fmt		 Retrieves a list of all available displays
fmt: The response is given as HTTP page.
Text based version defines one display per line as comma separated parameter list:
adapter id, name, type of display, width, height, pos-X, pos-Y, id-string 		1.7

4.8. Common Information commands

Interface to retrieve various meta- and system information.

TCP/IP and UDP description from
info.htm?displays
info.htm?displays&fmt 		Retrieves a list of all available displays
fmt: The response is given as HTML page.Text based version defines one display per line as comma separated parameter list: adapter id, name, type of display, width, height, pos-X, pos-Y, id-string, Handle		 1.7
info.htm?desktopdisplays
info.htm?desktopdisplays&fmt 		Retrieves a list of all available desktop displays
fmt: The response is given as HTML page.Text based version defines one display per line as comma separated parameter list: adapter id, name, type of display, width, height, pos-X, pos-Y, split-Rows, split-Cols, id-string, Handle		 2.5
info.htm?deskpartident&possz= [p]&id=[i]&name=[n]&fmt Shows an identification window on the specified place
fmt: optional, the response is given as HTMLpage
  • [p] : specifies the position and size of the identification window format:
    x,y,w,h (e.g. 0,0,640,480 defines a window at position (0,0) with size (640×480) )
  • [i] : optional, can be used to define an identification string
  • [n] : optional, can be used to define an additional name
 2.4

4.9. Project Manager commands

Interface to control the project manager.

TCP/IP and UDP description from
pm.htm?status[&fmt] Retrieves the current status of the project manager.
fmt: The response is given as HTML page.Layout for plain text response: Line separated CSV,  first Line: a,”b”,c,
  • a => [ 0,1 ] specifies if a new project can be loaded or a specific project step can be started currently (0: no, 1: yes)
  • b => path string of the current project
  • c => count of project steps of current project

Other lines: a,”b”,”c”: This lines contain informations about available project steps.

  • a => index of the project step
  • b => project step description string
  • c => project step state string
 6.0.2
pm.htm?load=project[&fmt] Tries to load the specified project. A [project] can be defines by it name (located in default project folder), or as complete path.
fmt: The response is given as HTML page.Layout for plain text response: Line separated CSV: a,”b”
  • a => [0]: an error occurs, [1]: success
  • b => error string
 6.0.2
pm.htm?start=step[&queue][&fmt] Tries to start the specified project step [step].
Currently implemented are: “Design”, “Calibrate”, “Edit”, “Edit MRD”, “Export”, “Recalibrate”, “Activate”, “Deactivate“.
Not all steps are available in in all project types. Possible steps can be retrieved by pm.htm?status (project step description).
fmt: The response is given as HTML page.
queue: If project step can’t be started immediately, the project step is queued to start after previous stepsLayout for plain text response. Line separated CSV: a,”b”
  • a => [0]: an error occurs, [1] : success
  • b => error string
 6.0.2



Was this helpful?


Related Articles

Didn't find your answer? Contact Us
