The scanning process is fully automated. The progress bar visualizes the current status of the calibration process.

The process speed depends on the data transmission rate of the camera and the information you have put into the system.

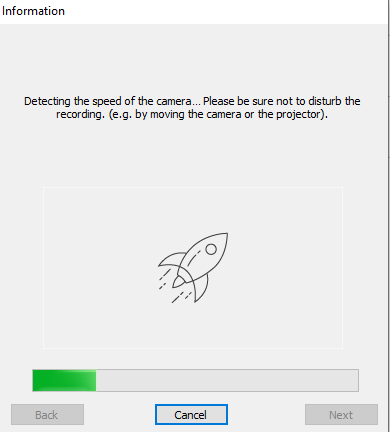

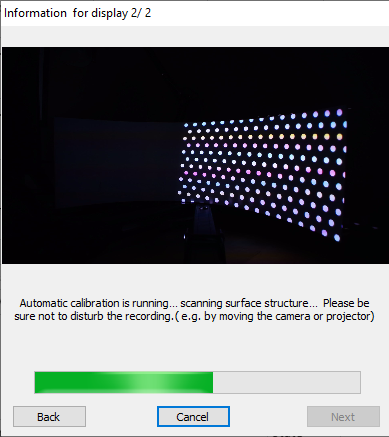

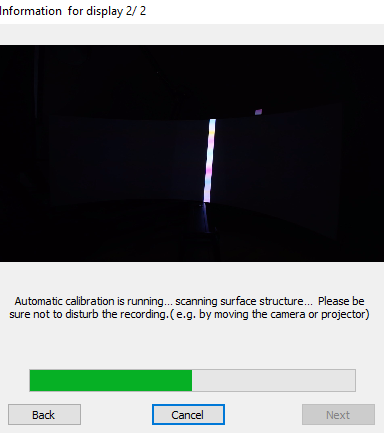

The following images are screenshots of the different parts of the scanning process :

IMPORTANT NOTE:
The projectors and camera must not be moved while calibration is in progress (indicated by the output of moving test patterns from the projector). In addition, the measurement process must not be interrupted by external influences (e.g. changes in ambient light, people between the projector and projection surface).
