New VIOSO Calibration Kits arebased on a HiK Robotics IP camera camera. It comes with the camera body, a suitable lens, and a PoE-Injector for running the camera on any switch or directly from the PC/server.
Table of Contents
Overview about Calibration kits based on HiK cameras:
|Calibration Kit||Description||Camera Body||Interface||Sensor size||Resolution||Lens|
|CK_W(xx)||Wideangle calibration kit||HiK CA Series||GigE||1/1.8”||3072 x 2048||89,0° x 73,8°
76,0° x 60,8°
56,8° x 44,0°
|CK_WU(xx)||Ultra Wideangle calibration kit||HiK CA Series||GigE||1/1.8”||3072 x 2048||135,0° x 119,0°
110,0° x 94,0°
|CK_T(xx)||Tele calibration kit||HiK CA Series||GigE||1/1.8”||3072 x 2048||44,7° x 33,9°
28,9° x 21,9°
|CK_VF||Varifocal calibration kit||HiK CA Series||GigE||1/1.8”||3072 x 2048||97,3° x 71,5° – 28,2° x 21,2°|
|CK_FDN||Fulldome calibration kit||HiK CA Series||GigE||1”||2592 x 2048||365,00° x 185,00°|
I. Connecting the camera

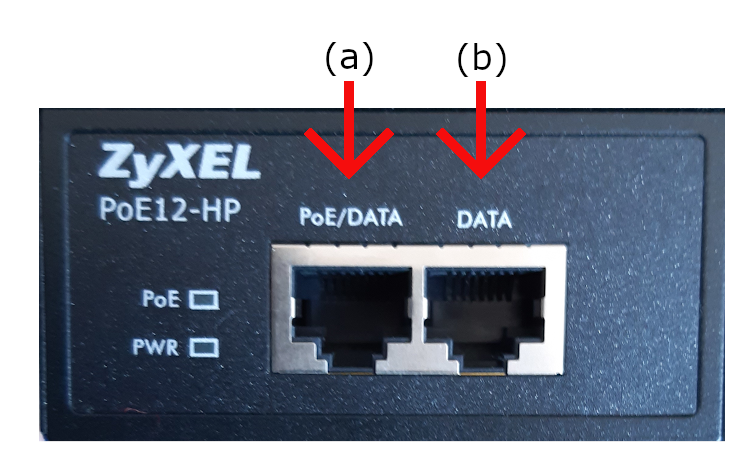

Mount the camera and connect camera to PoE injector and the PoE injector to the network and power.
a. PoE (Power Over Ethernet)/DATA- Connect the camera to this socket (this will power the camera and a small light will flicker).
b. DATA- Connect the Ethernet cable to the PC/server or to a switch.
- The camera requires a stable 1Gb/s ethernet connection. 100MB/s won’t work!
- We strongly recommend running the camera directly to the PC. Therefore, VIOSO servers usually come with 2 dedicated Ethernet ports. Please note that during calibration the camera creates a large amount of data, occupying the whole network bandwidth and therefore should not be shared with other network based applications (e.g. remote access).
II. Installing the driver package “MVS” and DirectShow interface
- Download: https://vioso.com/download/hik-driver-software-mvs/

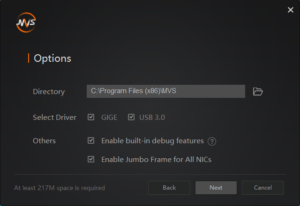

- Install driver:
- Install DirectShow Interface :
Run as Admin:
C:\Program Files (x86)\MVS\Development\ThirdPartyPlatformAdapter\DirectShow\x64\MvDSS2\InstallDSSvc_x64.bat
For x86 systems, run the same files from \x86 folder instead.
- Reboot the system.
III. Network configuration
- Make sure that the camera is connected and powered (PowerLED “blue”)
- Run the application “MVS”.
- If the camera is connected, it shows within the “GigE” tree under the network adapter.

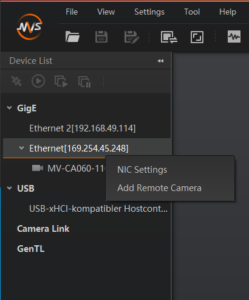

- If the network adapter is set to DHCP, the camera gets an address starting with “169.254…”. In this case it is required to reconfigure the network interface to a static IP. Right-Click the network adaptor and select “NIC Settings”

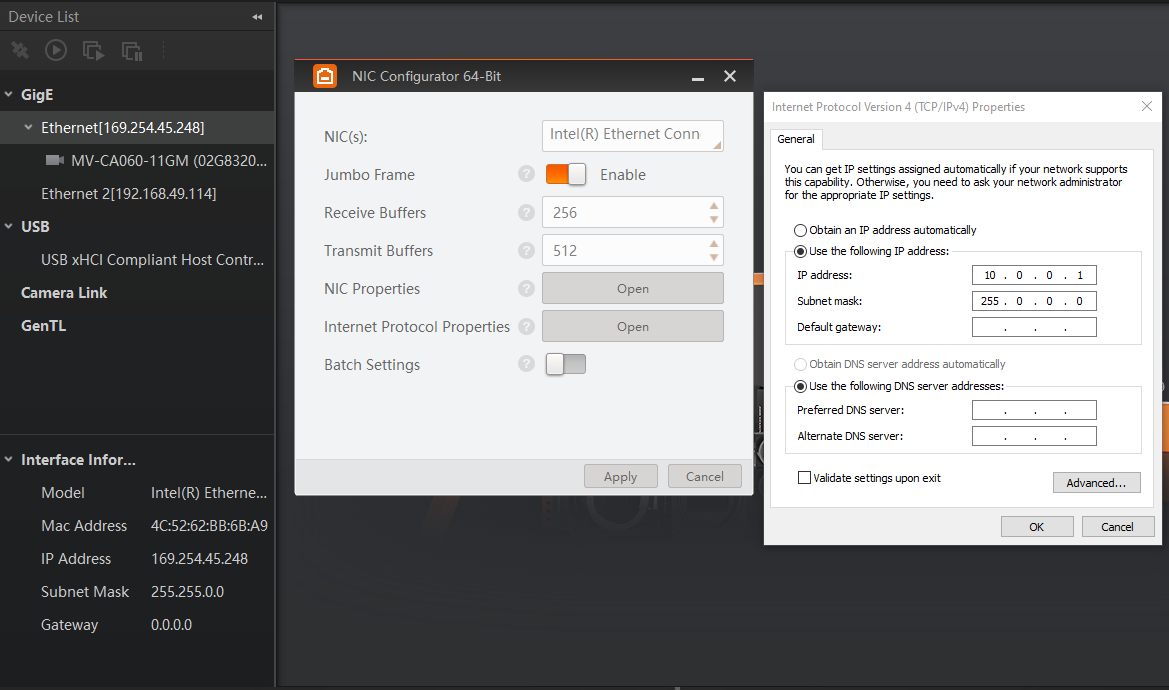

- In the window “NIC Configurator” click “Internet protocol properties” to access the Windows network settings. Change to static IP setting and enter an appropriate IP (e.g. 10.0.0.1 / 255.0.0.0 for a point-to-point connection). If the network already is set to a fixed IP, you can skip this step.
Terminate everything with “OK” and “Apply”.
- Right-Click on the camera name and open the “Modify IP Address” dialog. Enter an IP that fits to the IP range entered for this ethernet connection (e.g. 10.0.0.2 according to the example above)
- This way the camera has a fixed IP, that will make all subsequent tasks for calibration more transparent.
IV. Basic configuration
All settings of the camera can be done in the “MVS” software. It is a complex tool, allowing a lot of settings to be made. But we recommend to stick to some very fundamental settings only, leaving as much as possible untreated. All settings that are done by the MVS software are persistent in the camera.
Once the camera network configuration is complete, the camera icon gets green, indicating that the camera is ready to be operated. Launch the preview by double clicking the camera and press the “Play” Button in the top button bar to display a live camera image.
Now it’s time to switch off all ambient light sources and have the projectors powered on. Use the live view to position the cameras while filming the projection surface. The projectors should display a solid color (ideally white) so that the camera can be set to an appropriate sensitivity.

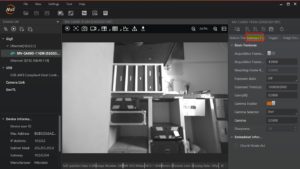

Switch to the tab “Common Functions” to handle the most important parameters of the camera sensor:
- Acquisition Framerate: Deactivate
- Exposure Auto: always set to OFF!
For the first time, you can set it to “once” to get an initial value of auto-exposure and start seeing a bright image, then turn it back off.
- Exposure time: Set to a value that matches with the brightness of the filmed scene. By setting the exposure, the framerate automatically adapts accordingly. Please evaluate the exposure when projectors are displaying bright content, filling all the projection area.
- Gain: Always leave set to 0. Driving the camera brightness using digital gain often has a bad impact on the scanning stability.
- Gamma Enable: OFF/ON – if the camera image is too dark, enable Gamma and use either of the selectors to change to an appropriate level. Try to maintain a high contrast when setting a user defined gamma value.
Region of Interest / Image cropping

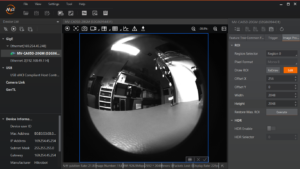

Switch to the tab “Image Properties” to crop the image. By reducing the image size, e.g. cropping unnecessary parts of the image, the frame rate can be increased, this speeding up the scanning procedure.
- Draw ROI [Edit]: Starts an interactive drawing tool that helps positioning the region of interest onto the current camera image. By dragging and resizing, the values for Offset X/Y and size of the ROI are adjusted. Click the “confirm” icon at the bottom right corner of the rectangle to activate the region of interest, thus cropping the other parts of the image
- Restore Max. ROI: resets all settings so that the whole image is used
Example: To set the ROI of a fulldome calibration kit to match the fisheye lens, set…
- Width = 2048
- Offset = 256

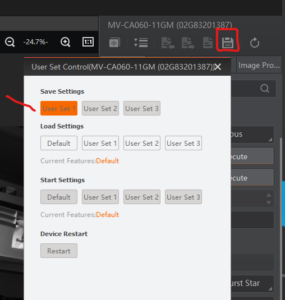

Even though all settings made in the MVS software are immediately stored inside the camera, it is still possible to handle multiple sets of configurations. This “User Control sets” menu is accessible from the top right button bar. Usually it is not required to handle several parameter settings, but if there is a demanding situation the usage of several user sets can help to maintain a well-controlled workflow.
You can also set “Start Settings” to be your specified User Set if you experience problems of camera losing its setting on reboots or after unplug/replugs.
V. Using the camera in VIOSO Core
Once the camera is configured, MVS software must be closed.
It is not possible to access the camera within VIOSO Core as long as the camera is opened in MVS!
The camera will show up as “DirectShow” device with a device name like “HIKRobot MV…”. All parameters are available in a large parameter tree, that can be filtered by categories and complexity (“Guru”, “Beginner”…). Though all parameters seem accessible, it is not recommended to do much changes here, because of a bad user experience:
- It is hard to browse through the vast parameter tree
- After each parameter change, the dialog closes and must be re-opened and browsed through again
For “last minute” changes, though, we recommend to concentrate on these parameters:

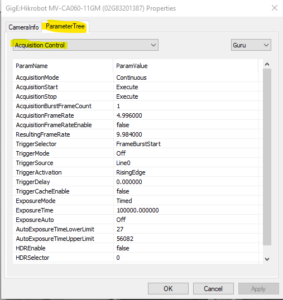

- Acquisition Control: Manipulate here the “Exposure time” to adjust the camera sensitivity to the test pattern displayed by the projectors

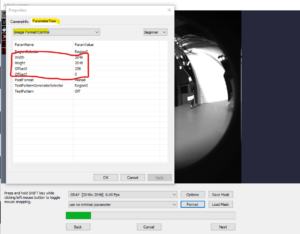

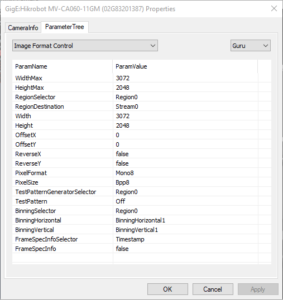

- Image Format Control: Use the values “Width/Height” as well as “OffsetX/Y” to enter a (well known) region of interest:
Example: To crop the image of a fulldome calibration kit to fit the lens…
- set Width = 2048
- set OffsetX = 256
Since the usability of these dialogs is challenging, we recommend to make these settings in the MVS application.
Notes about Multi-Camera usage:
- In MVS, when switching between cameras views, stop acquisition on the previous first or you will have bandwidth error warnings.
- In VIOSO MRD window (Model View Control) you might not see the camera full name in the dropdown menu. To check if it’s the right camera assigned, open the MRD file you created in a text editor. It is in XML format where
defCamNameparameter refers to the camera that calibrated the selected compound.
- Optional tip: It can be helpful to fix camera custom names in MVS (Right Click the camera > Rename User ID ). They will appear in VIOSO under “adjust camera > Options > Camera info”
